AG1000 GNSS Leveling System

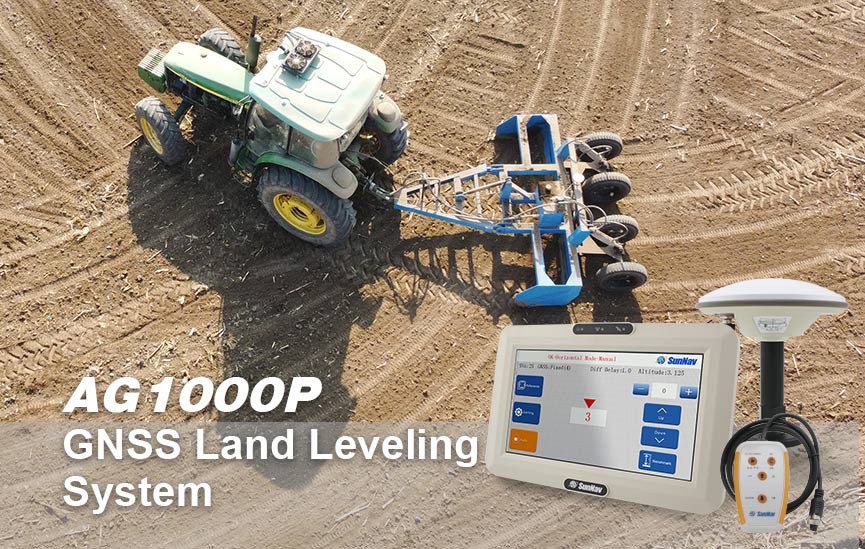

AG1000P is high accuracy and high performance GNSS leveling system developed by SunNav Technology Co., Ltd. It could be widely used for precision agriculture field : waste land reclamation, land leveling, slopping land to terrace, water land leveling , as well as large area hydraulic engineering , air portcon struction and sports ground construction.

AG1000P is high accuracy and high performance GNSS leveling system developed by SunNav Technology Co., Ltd. It could be widely used for precision agriculture field: wasteland reclamation, land leveling, slopping land to terrace, water land leveling, as well as large area hydraulic engineering, air port construction and sports ground construction.

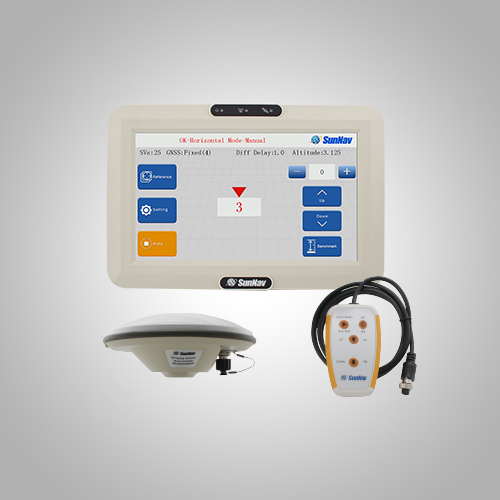

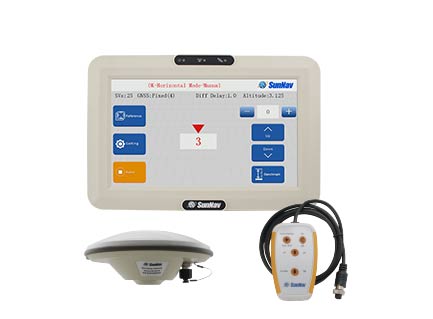

CB-1000P(Rover and control)

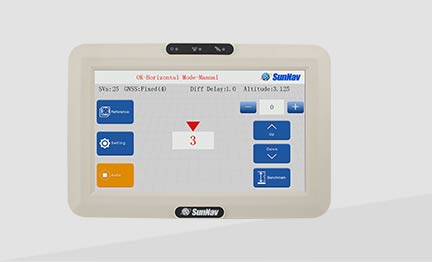

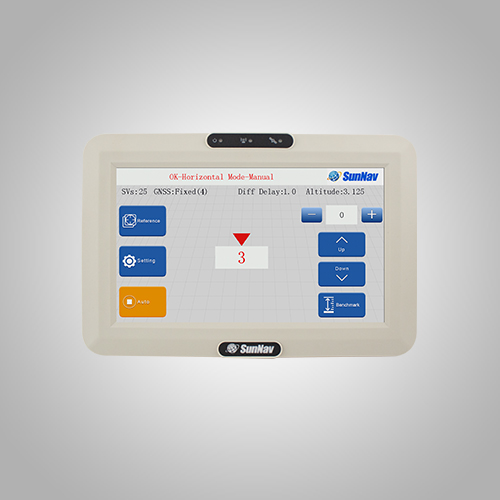

10.1’ touch screen display, to show the real time height difference clearly.Easy operation, supports both horizontal and slope modes;

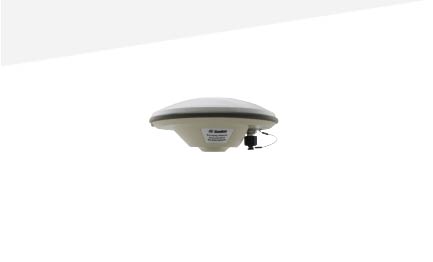

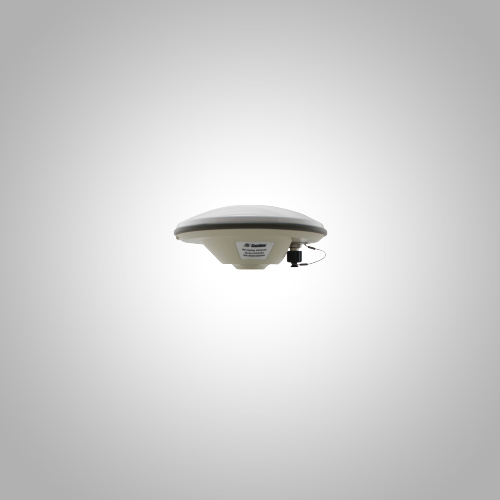

GNSS AntennaGNSS antenna can give high precision and heading.

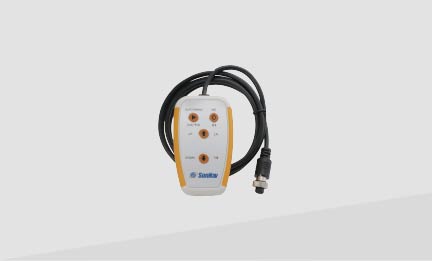

Remote Controller

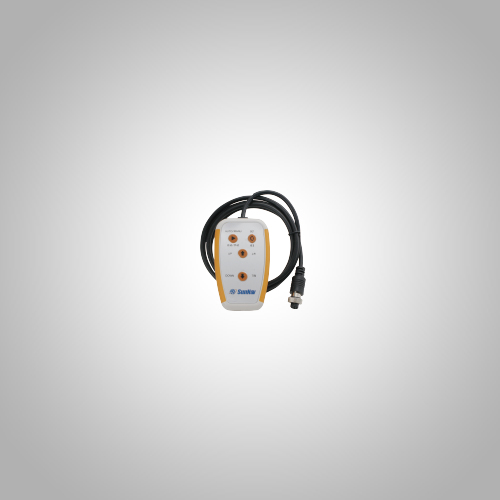

Remote Controller is a manual controller, waterproof and dustproof is IP65
  • Features
  • Specifications
  • Application

■ 10’’ touch screen display, to show the realtime height difference clearly;

■ Easy operation, supports both horizontal andslope modes;

■ Could display real time height difference andequipment status information;

■ Integrate surveying function;

■ Could adjust the leveling accuracy;

■ Adjustable screen backlight;

■ Adjustable radio frequency, from 410MHZ to 470MHZ, free adjustment for frequency point,toavoid the signal interference;

■ Adjustable electromagnetic valve reactionsensitivity,9 Support system update

M100

SINGNAL TRACKING

352Channels

-GPS: L1/L2

-BDS: B1/B2

-GLONASS:L1/L2

-SBAS:L1C/A

Galileo(upgradable)

BDS global signal (upgradable)

POSITIONING  SPECIFICATIONS

PostProcessing Static:Horizontal:2.5mm+1ppm, Vertical:5.0mm+1ppm

RealTime Kinematics (RTK):Horizontal:10mm+1ppm, Vertical:20mm+1ppm

SBAS:1.0m

Initializationtime: < 10s

Initializationreliability:  > 99.9%

Up to 20Hz raw measurement & position outputs

Timeto First Fix

Cold start <50s

Hot start < 15s

Signal re-acquisition <3s

PHYSICAL AND ELECTRICAL  CHARACTERISTICS

Size:213mm x 119mm x 73mm

Weight:1.2kg

Temperature  Operating:-40℃~70℃

TemperatureStorage:-45℃~80℃

Humidity:95% condensation

Power:12v

Communication interface: 2RS232 interfaces /2external power interface (lemo)

Radio frequency interface:1 UHF antenna interface / 1 GNSS antennainterface

REFEERENCE  OUTPUTS/INPUTS

RTCM2.X/RTCM3.0/RTCM3.2、 MSM4、MSM5

COMMUNICATION  PROTOCOL

TRANSEOT/TRIMTALK

INSTRUCTIONS

3 LED indicator lights (power light/star search light/datatransmission light)

High definition LED screen

Frequency/protocol/baud rate adjustable
