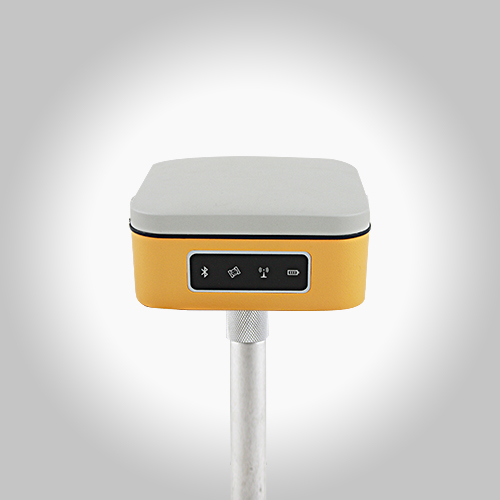

S2 GNSS Receiver

The receiver will no longer be a stand-alone hardwaredevice, but a complete intelligent system. With the powerful cloud service platform, you can remotely register , upgrade devices , remote services, remote diagnosis, you will enjoy a variety of remote services without leaving home. Classic symmetrical design, smalland smart.


Leading technology with superior capabilities, S2 has tracked all GNSS Constellations: GPS, GLONASS, Galileo, BDS and SBAS.


  • Features
  • Specifications
  • Aplication
1.Linux OS
2.Support GPS, GLONASS,
    BDS, GALIEO,QZSS and SBAS
3.Real Time Kinematic(<30km)-Network Surveying³:
    Horizontal:10mm + 1ppm
    Vertical: 15mm + 1ppm
4.Large Battery: 9600mAh.
    Working time: 14 hours
5.Smallest CORS GNSS Receiver : 10*15*5cm
6.Bluetooth V2.0
7.Hi-speed USB Connection
GNSS
GPS:L1,L2,L5
GLONASS:L1,L2
BDS:B1,B2,B3
GALIEO:E1,E5a,E5b
QZSS:L1,L2,L5
SBAS:L1
Data Format:NMEA-0183
I/O protocol:RTCM 2.X,RTCM 3.X
Data update rate:1Hz
Recapture time<1s
Cold start<40s


Positioning Accuracy
Point Positioning(RMS) H:1.5m V:3.0m
DGPS(RMS) H:0.4m V:0.8m
RTK(RMS) H:10mm+1ppm V:15mm+1ppm
Time Precision(RMS):20ns
Velocity Accuracy(RMS):0.3m/s


Data Communications
Interface:TypeC Connector
Bluetooth:BluetoothV2.0


Power Light
Power Indicator:Power indicator
                Working normally, the red light is always on.
                Red light flashes in charging state
                The green light is always on when the charge is complete.
Satellite light:The number of flashes represents the state of the satellite
Bluetooth light:Bluetooth connections are always bright
Data chain light:Flicker with differential signal


Battery
Battery:3.7V,9600mAh
Charging:5V,1A
Working time:14hours


Environmental Characteristics
Working Temperature:-20 ºC ~ +60 ºC
Storage Temperature:-20 ºC ~  +70 ºC
Anti-seismic:1.5 meters naturally fell to the ground IP65


Physical characteristics
Material:Aluminum alloy shell +ABS/PC Plastic top cover
SIZE:10*10*5cm
